Bridge Pattern

  • The Bridge Pattern is a Structural Design Pattern, It split a class or set of closely related classes into two separate hierarchies, abstraction and implementation. It’s allow the abstraction and implementation to be developed independently.
  • The client code can access only abstraction part without being concerned about the implementation part.

    Example:

    Consider you are creating HouseHold Management Application. A house there are so many commercial appliances like AC, Refrigerator, Fan, TV, Gate Opener and so on…. that you can turn on or off. There are different ways to turn the appliance on or off, such as using switch or using automatic remote control mechanism or manual remote control mechanism. It’s good in application but how about code? In this case automatic remote controller using same switch but different commercial home appliance, on the same time manual remote controller using same switch but different commercial home appliance. To overcome this problem bridge pattern come to this place. It work as bridge interface between abstraction ((i.e.) Automatic Remote Controller, Manual Remote Controller) and implementation ((i.e.) TV, Refrigerator, Gate Opener and so on…..)

    Sample Demo Diagram:

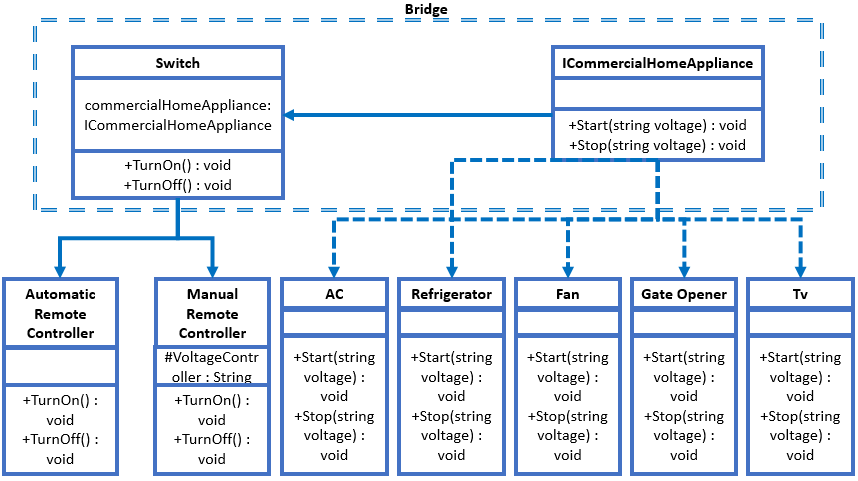

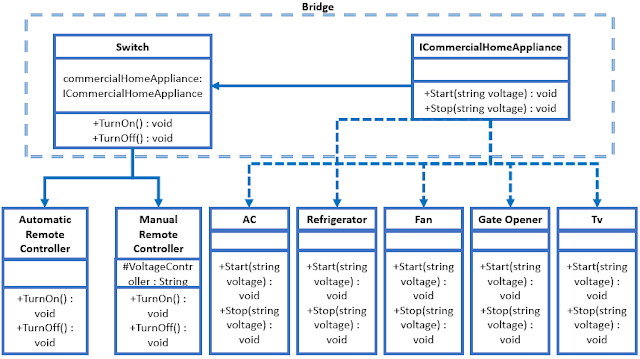

    UML Diagram:



    Drawbacks:

    ·        The bridge interface of the behaviour can require changes over time, which can cause maintenance problems.

    ·         The abstraction and implementation cannot be independently extended or composed.

    When we use Adapter Pattern and Bridge Pattern?

    ·         Adapter makes things work after they’re designed; Bridge makes them work before they are

    Sample Demo Program:

    The following participants are involved in given program
    1.       Abstraction – Core of the bridge design pattern. It contains members that define an abstract business object and its functionality. It also contains a reference to an object of type bridge
    2.       Redefined Abstraction – This is a class which inherits from the Abstraction class. It extends the interface defined by Abstraction class.
    3.       Bridge – It’s an Interface which acts as a bridge between the abstraction class and implementation classes and also makes the functionality of implementation class independent from the abstraction class
    4.       Concrete Implementation - It’s a set of classes which implement bridge interface and also provide the implementation details for the associated Abstraction class.

    Entire Code Structure:

      1
      2
      3
      4
      5
      6
      7
      8
      9
     10
     11
     12
     13
     14
     15
     16
     17
     18
     19
     20
     21
     22
     23
     24
     25
     26
     27
     28
     29
     30
     31
     32
     33
     34
     35
     36
     37
     38
     39
     40
     41
     42
     43
     44
     45
     46
     47
     48
     49
     50
     51
     52
     53
     54
     55
     56
     57
     58
     59
     60
     61
     62
     63
     64
     65
     66
     67
     68
     69
     70
     71
     72
     73
     74
     75
     76
     77
     78
     79
     80
     81
     82
     83
     84
     85
     86
     87
     88
     89
     90
     91
     92
     93
     94
     95
     96
     97
     98
     99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    150
    151
    152
    153
    154
    155
    156
    157
    158
    159
    160
    161
    162
    163
    164
    165
    166
    167
    168
    169
    170
    171
    172
    173
    174
    175
    176
    177
    178
    179
    180
    181
    182
    183
    184
    185
    186
    187
    188
    189
    190
    191
    192
    193
    194
    195
    196
    197
    198
    199
    200
    201
    202
    203
    204
    205
    206
    207
    208
    209
    210
    211
    212
    213
    214
    215
    216
    217
    218
    219
    220
    221
    222
    223
    224
    225
    226
    227
    /**
     * Author : Manikandan M
     * Description : Sample program for bridge pattern
     */
    using System;
    using System.Threading;

    namespace BridgePattern
    {
        class Program
        {
            /// <summary>
            /// 'Abstraction' class
            /// </summary>
            abstract class Switch
            {
                public ICommercialHomeAppliance commercialHomeAppliance;
                public abstract void TurnOn();
                public abstract void TurnOff();
            }

            /// <summary>
            /// 'RefinedAbstraction' class
            /// </summary>
            class AutomaticRemoteController: Switch
            {
                public override void TurnOn()
                {
                    commercialHomeAppliance.Start("240 V"); //default voltage
                }

                public override void TurnOff()
                {
                    commercialHomeAppliance.Stop("240 V");
                }
            }

            /// <summary>
            /// 'RefinedAbstraction' class
            /// </summary>
            class ManualRemoteController : Switch
            {
                public string VoltageController { get; set; }

                public override void TurnOn()
                {
                    commercialHomeAppliance.Start(VoltageController); //manual voltage
                }

                public override void TurnOff()
                {
                    commercialHomeAppliance.Stop(VoltageController);
                }
            }

            /// <summary>
            /// 'Bridge' Interface
            /// </summary>
            interface ICommercialHomeAppliance
            {
                void Start(string voltage);
                void Stop(string voltage);
            }

            /// <summary>
            /// 'ConcreteImplementation' class
            /// </summary>
            class AC : ICommercialHomeAppliance
            {
                private string name;
                public AC(string name)
                {
                    this.name = name;
                }

                public void Start(string voltage)
                {
                    Console.WriteLine(string.Format("{0} is started. Time: {1}, Voltage: {2}", this.name, DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss:fff"), voltage));
                }

                public void Stop(string voltage)
                {
                    Console.WriteLine(string.Format("{0} is stoped. Time: {1}, Voltage: {2}", this.name, DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss:fff"), voltage));
                }
            }

            /// <summary>
            /// 'ConcreteImplementation' class
            /// </summary>
            class Refrigerator : ICommercialHomeAppliance
            {
                private string name;
                public Refrigerator(string name)
                {
                    this.name = name;
                }

                public void Start(string voltage)
                {
                    Console.WriteLine(string.Format("{0} is started. Time: {1}, Voltage: {2}", this.name, DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss:fff"), voltage));
                }

                public void Stop(string voltage)
                {
                    Console.WriteLine(string.Format("{0} is stoped. Time: {1}, Voltage: {2}", this.name, DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss:fff"), voltage));
                }
            }

            /// <summary>
            /// 'ConcreteImplementation' class
            /// </summary>
            class Fan : ICommercialHomeAppliance
            {
                private string name;
                public Fan(string name)
                {
                    this.name = name;
                }

                public void Start(string voltage)
                {
                    Console.WriteLine(string.Format("{0} is started. Time: {1}, Voltage: {2}", this.name, DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss:fff"), voltage));
                }

                public void Stop(string voltage)
                {
                    Console.WriteLine(string.Format("{0} is stoped. Time: {1}, Voltage: {2}", this.name, DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss:fff"), voltage));
                }
            }

            /// <summary>
            /// 'ConcreteImplementation' class
            /// </summary>
            class GateOpener : ICommercialHomeAppliance
            {
                private string name;
                public GateOpener(string name)
                {
                    this.name = name;
                }

                public void Start(string voltage)
                {
                    Console.WriteLine(string.Format("{0} is started. Time: {1}, Voltage: {2}", this.name, DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss:fff"), voltage));
                }

                public void Stop(string voltage)
                {
                    Console.WriteLine(string.Format("{0} is stoped. Time: {1}, Voltage: {2}", this.name, DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss:fff"), voltage));
                }
            }

            /// <summary>
            /// 'ConcreteImplementation' class
            /// </summary>
            class Tv : ICommercialHomeAppliance
            {
                private string name;
                public Tv(string name)
                {
                    this.name = name;
                }

                public void Start(string voltage)
                {
                    Console.WriteLine(string.Format("{0} is started. Time: {1}, Voltage: {2}", this.name, DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss:fff"), voltage));
                }

                public void Stop(string voltage)
                {
                    Console.WriteLine(string.Format("{0} is stoped. Time: {1}, Voltage: {2}", this.name, DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss:fff"), voltage));
                }
            }

            static void Main(string[] args)
            {
                int delayMilliseconds = 2000;
                ICommercialHomeAppliance ac = new AC("MicroMax Star Split AC");
                ICommercialHomeAppliance refrigerator = new Refrigerator("LG Single Door Refrigerator");
                ICommercialHomeAppliance fan = new Fan("Usha Fan");
                ICommercialHomeAppliance tv = new Tv("Panasonic TV");
                ICommercialHomeAppliance gateopener = new GateOpener("GPS 3G Gate Door Opener");

                //automatic remote controller
                Switch automaticRemoteSwitch = new AutomaticRemoteController();
                Console.WriteLine("---------------------------Automated Remote Controller---------------------------");
                //control gate opener
                automaticRemoteSwitch.commercialHomeAppliance = gateopener;
                automaticRemoteSwitch.TurnOn();
                Thread.Sleep(delayMilliseconds);
                automaticRemoteSwitch.TurnOff();
                Console.WriteLine("---------------------------------------------------------------------------------");

                //manual remote controller
                ManualRemoteController manualRemoteSwitch = new ManualRemoteController();
                Console.WriteLine("---------------------------Manual Remote Controller------------------------------");
                manualRemoteSwitch.VoltageController = "220 V";
                //control ac
                manualRemoteSwitch.commercialHomeAppliance = ac;
                manualRemoteSwitch.TurnOn();
                Thread.Sleep(delayMilliseconds);
                manualRemoteSwitch.TurnOff();

                //control refrigerator
                manualRemoteSwitch.commercialHomeAppliance = refrigerator;
                manualRemoteSwitch.TurnOn();
                Thread.Sleep(delayMilliseconds);
                manualRemoteSwitch.TurnOff();

                //control fan
                manualRemoteSwitch.commercialHomeAppliance = fan;
                manualRemoteSwitch.TurnOn();
                Thread.Sleep(delayMilliseconds);
                manualRemoteSwitch.TurnOff();

                //control tv
                manualRemoteSwitch.commercialHomeAppliance = tv;
                manualRemoteSwitch.TurnOn();
                Thread.Sleep(delayMilliseconds);
                manualRemoteSwitch.TurnOff();
                Console.WriteLine("---------------------------------------------------------------------------------");

                Console.Write("Press any key to exist...");
                Console.ReadKey();
            }
        }
    }


    Final Output:



    Click here to download sample program
